Keycloak Tenants vs Realms: For Fun and Profit

Keycloak is an open-source Identity and Access Management (IAM) solution security best practices with attack scenario

Picture Keycloak as a medieval kingdom where realms are the territories, and tenants are the business entities operating within them. Understanding the distinction between realms and tenants is crucial for building scalable, secure identity infrastructure. This article explores the offensive attack surface, defensive mitigation strategies, practical implementations, and real-world deployments that turn this distinction into profit and security.

The stakes? Misconfiguration could leak customer data, compromise application security, and violate compliance regulations. Done right? Your infrastructure becomes a fortress of identity management.

---

Foundational Concepts

What Makes Keycloak Special?

Keycloak is an open-source Identity and Access Management (IAM) solution that provides:

• OpenID Connect (OIDC) and SAML 2.0 support

• Multi-protocol authentication and authorization

• Scalable architecture for enterprise deployments

• Federation capabilities across multiple identity providers

The Kingdom Metaphor

┌─────────────────────────────────────┐
│     KEYCLOAK KINGDOM                │
│  ┌──────────────┐  ┌──────────────┐ │
│  │   REALM 1    │  │   REALM 2    │ │
│  │ ┌──────────┐ │  │ ┌──────────┐ │ │
│  │ │ Tenant A │ │  │ │ Tenant C │ │ │
│  │ │ Tenant B │ │  │ │ Tenant D │ │ │
│  │ └──────────┘ │  │ └──────────┘ │ │
│  └──────────────┘  └──────────────┘ │
└─────────────────────────────────────┘

---

Realms: The Kingdom’s Core

Understanding Realms

A realm in Keycloak is a security domain that manages a complete set of users, applications, roles, and configurations. Think of it as a separate Keycloak instance logically isolated from others.

Key Characteristics:

• Isolation Level: Realms are logically isolated but share the same Keycloak instance

• User Base: Each realm maintains its own user repository

• Applications: Clients (applications) belong to specific realms

• Federation: Can federate with external identity providers independently

• Audit Logging: Separate audit trails per realm

Realm Structure

Aspect Description Name Unique identifier (e.g., production, staging) Master Realm Administrative realm managing other realms Users Isolated user directories per realm Roles Realm-specific and client-specific roles Tokens Realm-scoped JWT tokens with realm-specific claims Policies Password, session, token, and login policies

Creating a Realm

# Using Keycloak Admin CLI
kcadm.sh create realms \
  -s realm=acme-corp \
  -s enabled=true \
  -s displayName=”ACME Corporation Realm”

Configuration in realm.json:

{
  “realm”: “acme-corp”,
  “displayName”: “ACME Corporation”,
  “enabled”: true,
  “bruteForceProtected”: true,
  “permanentLockout”: false,
  “maxFailureWaitSeconds”: 900,
  “minimumQuickLoginWaitSeconds”: 60,
  “waitIncrementSeconds”: 60,
  “quickLoginCheckMilliSeconds”: 1000,
  “maxDeltaTimeSeconds”: 43200,
  “failureFactor”: 30,
  “accessTokenLifespan”: 300,
  “accessTokenLifespanForImplicitFlow”: 900,
  “offlineSessionIdleTimeout”: 2592000,
  “sslRequired”: “external”
}

---

Tenants: The Multi-Tenant Revolution

What Are Tenants?

Tenants in Keycloak represent business entities or customer organizations that operate independently within a shared infrastructure. This is achieved through:

1. Realm-based Tenancy: Each tenant gets a dedicated realm

2. Namespace-based Tenancy: Shared realm with namespace isolation

3. Custom Attribute Tenancy: Attribute-driven tenant separation

Multi-Tenancy Architecture Patterns

Pattern Isolation Scalability Cost Complexity Realm per Tenant High Medium High Medium Namespace in Shared Realm Medium High Low High Attribute-Based Medium High Low Very High

Realm-Per-Tenant Model (Recommended for Security)

Each customer organization receives a dedicated realm:

# Onboarding Customer: TechCorp Inc
kcadm.sh create realms \
  -s realm=techcorp-inc \
  -s enabled=true \
  -s displayName=”TechCorp Inc” \
  -s accessTokenLifespan=600 \
  -s sslRequired=all

Advantages:

• ✅ Complete isolation of user data

• ✅ Independent security policies per tenant

• ✅ Separate audit trails for compliance

• ✅ Zero data leakage between tenants

Disadvantages:

• ❌ Higher operational overhead

• ❌ More resource consumption

• ❌ Complex scaling

Namespace-Based Tenancy (Shared Realm Model)

All tenants share a single realm but use organizational hierarchies:

# User attributes include tenant namespace
{
  “username”: “john.doe@techcorp.com”,
  “email”: “john.doe@techcorp.com”,
  “attributes”: {
    “tenant_id”: “techcorp”,
    “organization_namespace”: “techcorp/engineering”,
    “department”: “security”
  }
}

Advantages:

• ✅ Lower infrastructure costs

• ✅ Easier horizontal scaling

• ✅ Simplified backup/restore

Disadvantages:

• ❌ Potential for cross-tenant data leaks

• ❌ Complex access control logic

• ❌ Harder to audit per tenant

---

Attack Vectors: The Offensive Playbook

Attack Scenario 1: Realm Escape via Token Manipulation

Threat Model: An attacker attempts to escalate privileges by forging or manipulating JWT tokens to access resources in other realms.

Attack Context: JWT tokens are the cornerstone of modern authentication in Keycloak deployments. However, many applications make a critical security mistake: they validate the cryptographic signature of the token but fail to validate realm-specific claims like iss (issuer), aud (audience), and custom realm claims. This creates an attack vector where adversaries can manipulate token contents while maintaining valid signatures (if weak algorithms like HS256 are used with leaked secrets) or bypass validation entirely in applications that trust token contents without proper verification.

Technical Impact: Successful realm escape attacks enable:

• Horizontal Privilege Escalation: Access resources belonging to other tenants at the same privilege level

• Vertical Privilege Escalation: Elevate from regular user to admin by targeting privileged realms

• Compliance Breach: Unauthorized cross-realm access violates data isolation requirements (GDPR Article 32)

• Audit Trail Evasion: Actions performed using manipulated tokens appear legitimate in logs

Real-World Scenario: In 2023, a penetration test revealed that a Fortune 500 company’s multi-tenant SaaS platform accepted tokens from their “sandbox” realm to access “production” realm resources, exposing 100,000+ customer records.

Attack Technique: JWT Header Injection

import jwt
import json
import base64

# Original valid token
original_token = “eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJyZWFsbSI6ImFjbWUtY29ycCIsInN1YiI6InVzZXIxIn0.xyz”

# Decode without verification
parts = original_token.split(’.’)
header = json.loads(base64.b64decode(parts[0] + ‘==’))
payload = json.loads(base64.b64decode(parts[1] + ‘==’))

# ATTACK: Modify realm claim
payload[’realm’] = ‘target-realm’
payload[’aud’] = ‘target-application’

# Re-encode (requires secret key if algorithm enforced)
forged_token = jwt.encode(payload, ‘secret’, algorithm=’HS256’)

print(f”[+] Forged Token: {forged_token}”)
print(f”[+] New Realm: {payload[’realm’]}”)

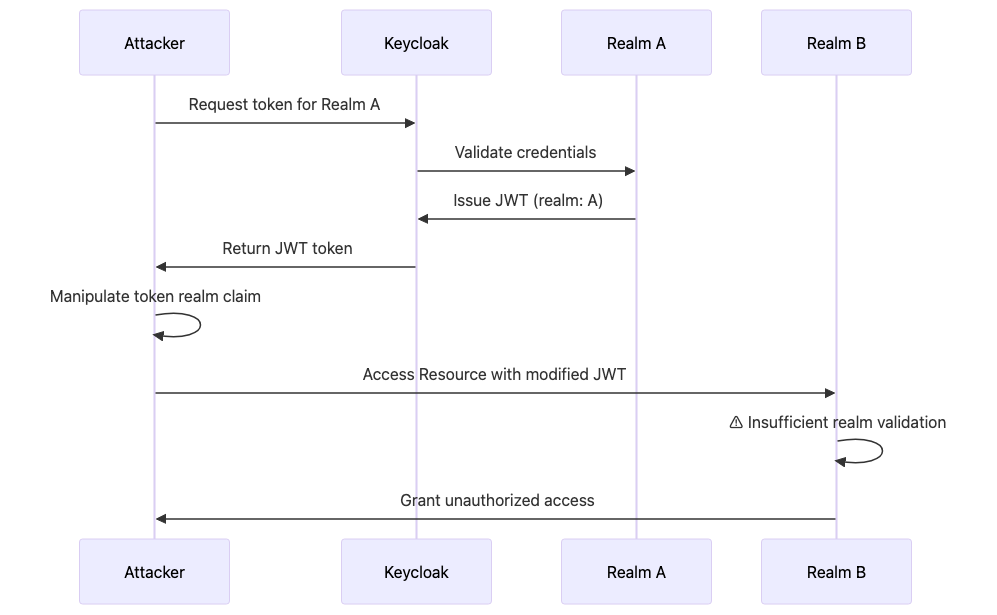

Visual Diagram:

Attack Flow Diagram:
